BP965 Bale Pro® Series

Process Square or Round Bales - Adds Flexibility When Using Multiple Forages

REAL flexibility

BP965 Bale Pro® Perfect for both feeding and bedding, the BP 965 Bale Pro® combines all the trusted design elements of the Highline® Bale Pro® series with the added versatility to handle either round or square bales. It also includes enhanced features such as a 9-foot (2.74 m) flail drum, which boosts processing speed for greater efficiency.

EFFICIENT LENGTHWISE PROCESSING of Square Bales.

One of the challenges of processing square bales is maintaining both a high loading efficiency AND high processing efficiency (the competition fails to deliver on either one or the other). The BP 965 Bale Pro® is capable of processing a 4’ x 4’ x 9’ ** (1.2 x 1.2 x 2.7 m)bale in minutes! The Twine Sickle™ Bale Prepping System on the BP 965 allows the bale to wafer apart upon dropping into the tub, leading to a vast increase in processing speed.*

*Bale processing times are contingent on bale type, aggression setting and tractor horsepower.

**Forages may react differently when the twine pressure is removed.

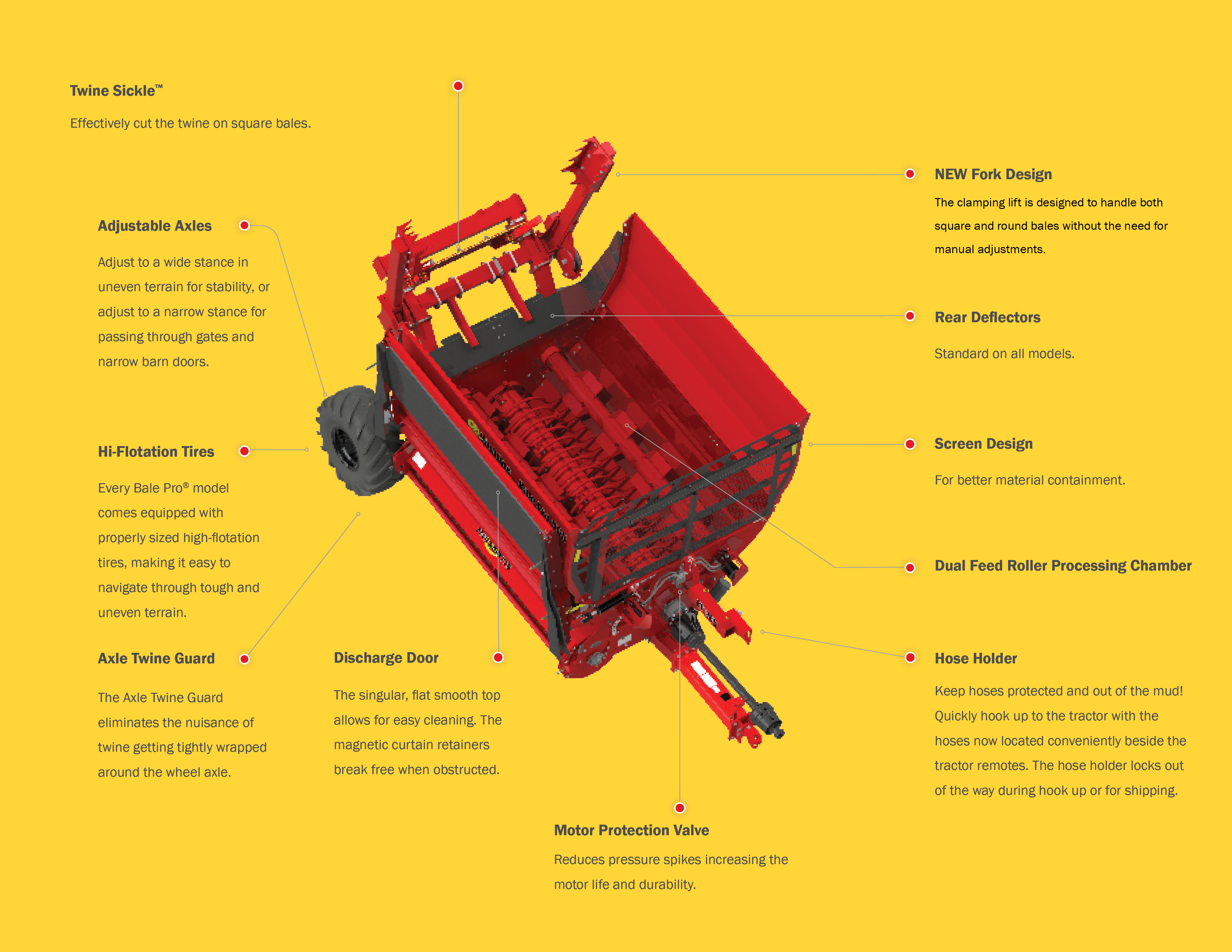

Features & Benefits

Discharge Door
The singular, flat smooth top allows for easy cleaning. The magnetic curtain retainers break free when obstructed.

Rear Deflectors
Standard on all models.

Screen Design
For better material containment.

Hose Holder
Keep hoses protected and out of the mud! Quickly hook up to the tractor with the hoses now located conveniently beside the tractor remotes. The hose holder locks out of the way during hook up or for shipping.

Motor Protection Valve
Reduces pressure spikes increasing the motor life and durability.

NEW Fork Design
The clamping lift is designed to handle both square and round bales without the need for manual adjustments.

**Click photo to expand**

The Grain Tank is a variable speed hydraulic drive feed system that allows for even and consistent flow.

Highline Grain Tank

Controlling Rations - It is vital to ensure that the amount of grain added into a ration is controlled. The amount of grain components in the ration needs to match up with the rumen’s ability to utilize the grains. Increasing the grain components too quickly can result in acidosis and the animals going off feed. The Highline® hydraulic drive feed system precisely distributes the grain or pellets into the hay or straw windrow. The hydraulic drive feed system now allows for stationary processing with precise grain addition – perfect for pre-processing for wagon or mixer feeding!
Control System Display - Easily set your rate for any feeding scenario. Enter the output you want, the calibration value, and start feeding.

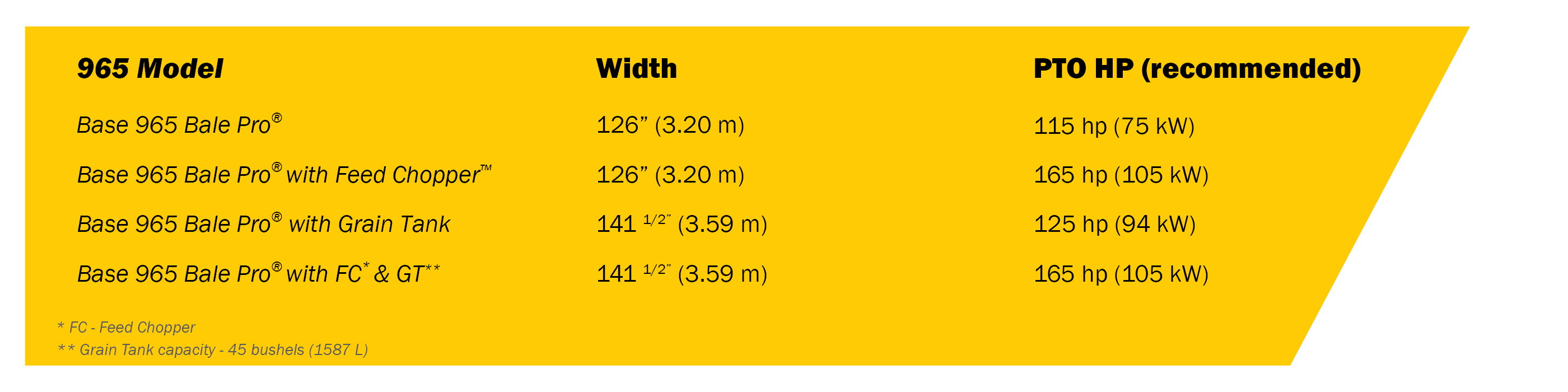

BP965 Bale Pro® Quick Specs

ADDITIONAL RESOURCES

A comprehensive library of Highline product information is only a click away!
Visit the Highline Electronic Documentation System for parts and operational documentation.

Parts Manual / Operator's Manual
