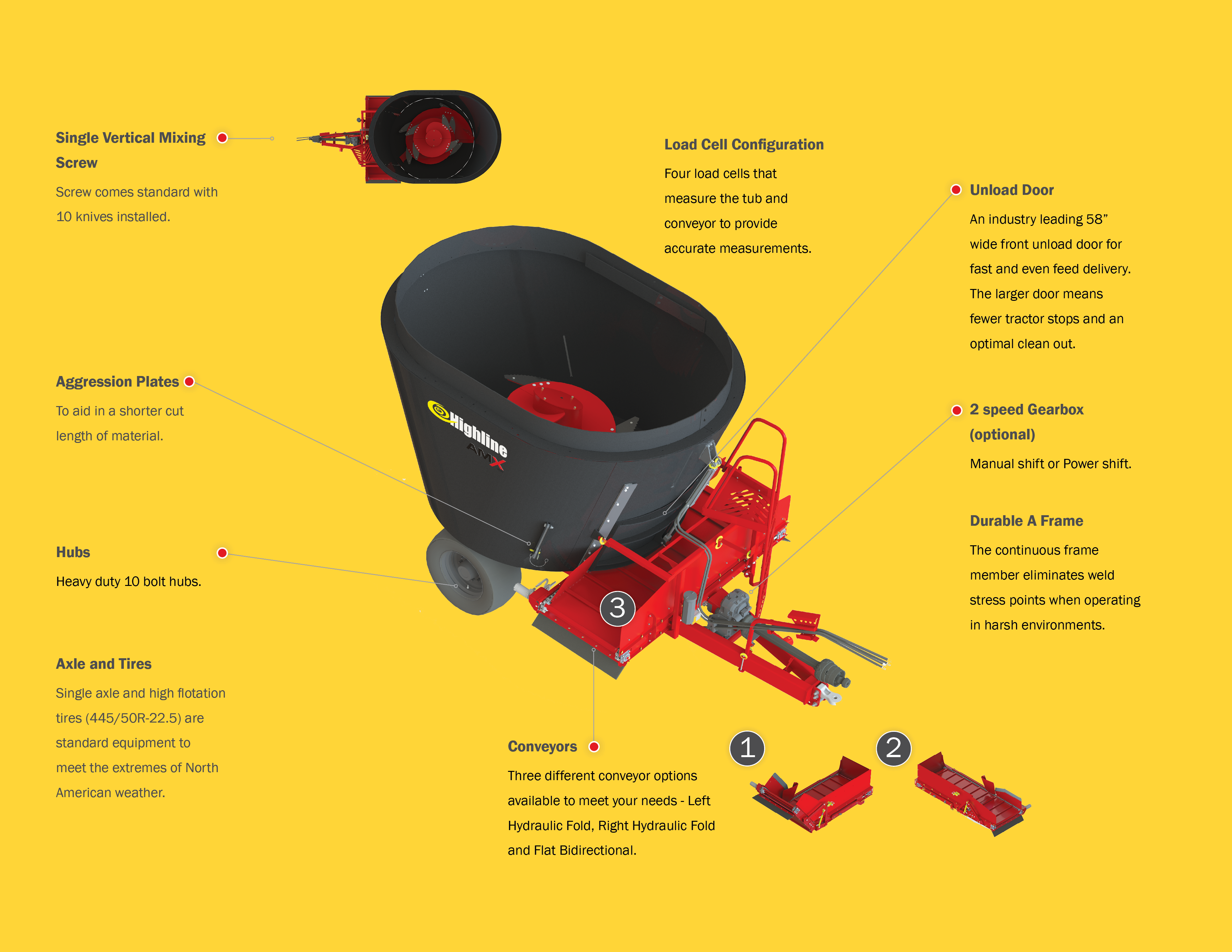

Features & Benefits
Single Vertical Mixing Screw
Screw comes standard with 10 knives installed.
Aggression Plates
To aid in a shorter cut length of material.
Hubs
Heavy duty 10 bolt hubs.
Axle and Tires
Single axle and high flotation tires (445/50R-22.5) are standard equipment to meet the extremes of North American weather.
Load Cell Configuration
Four load cells that measure the tub and conveyor to provide accurate measurements.
2 speed Gear Box (optional)
Manual shift or Power shift.
Durable A Frame
The continuous frame member eliminates weld stress points when operating in harsh environments.
Unload Door
An industry leading 58” wide front unload door for fast and even feed delivery. The larger door means fewer tractor stops and an optimal clean out.
Mud Flaps (optional)
To prevent material throw from the tractor tires onto the front unload conveyor.
Conveyors
Three different conveyor options available to meet your needs - Left Hydraulic Fold, Right Hydraulic Fold and Flat Bidirectional.
Hay Ring (optional)
**Click photo to expand**
