RP800 Rock Picker



Just RELEASED!




BUILT to Conquer the Toughest Ground

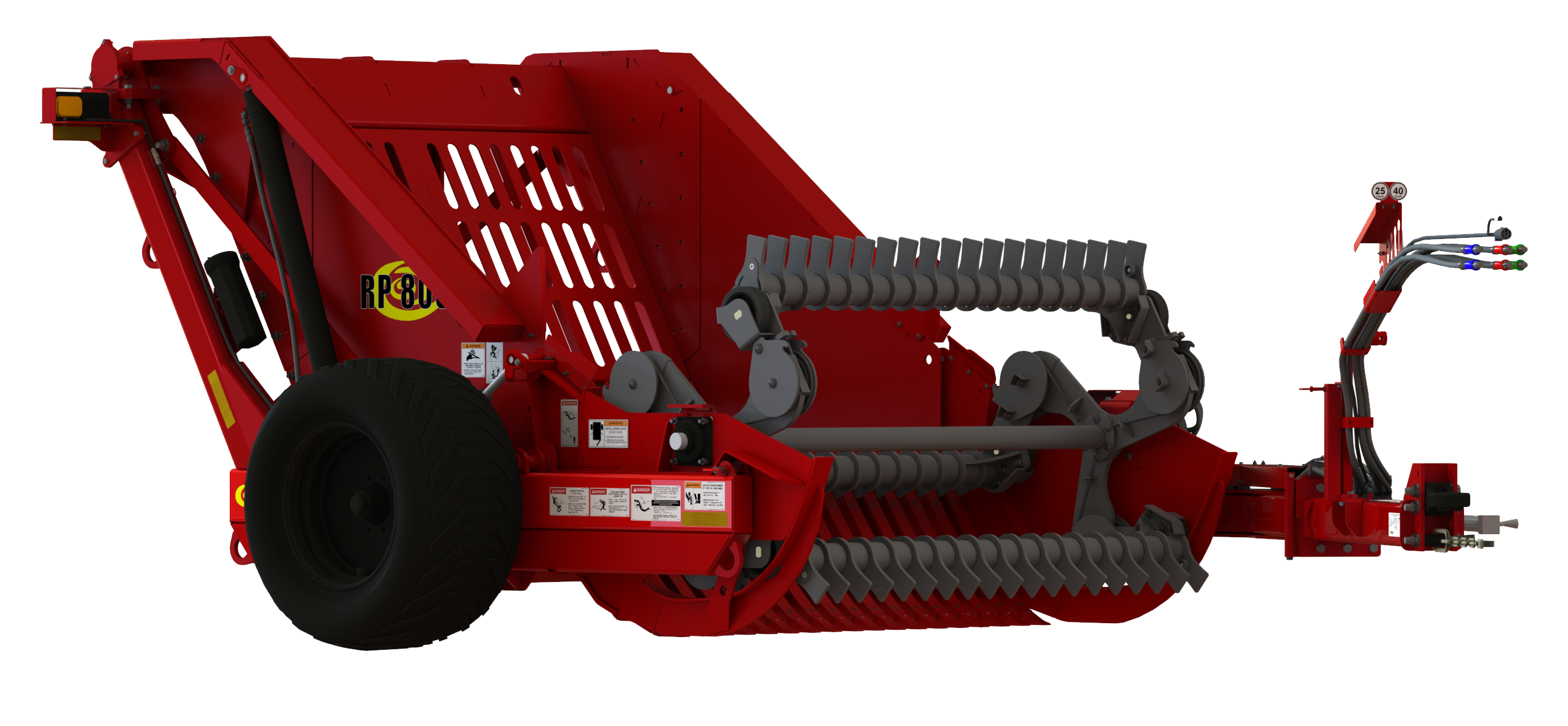

RP800 Rock Picker

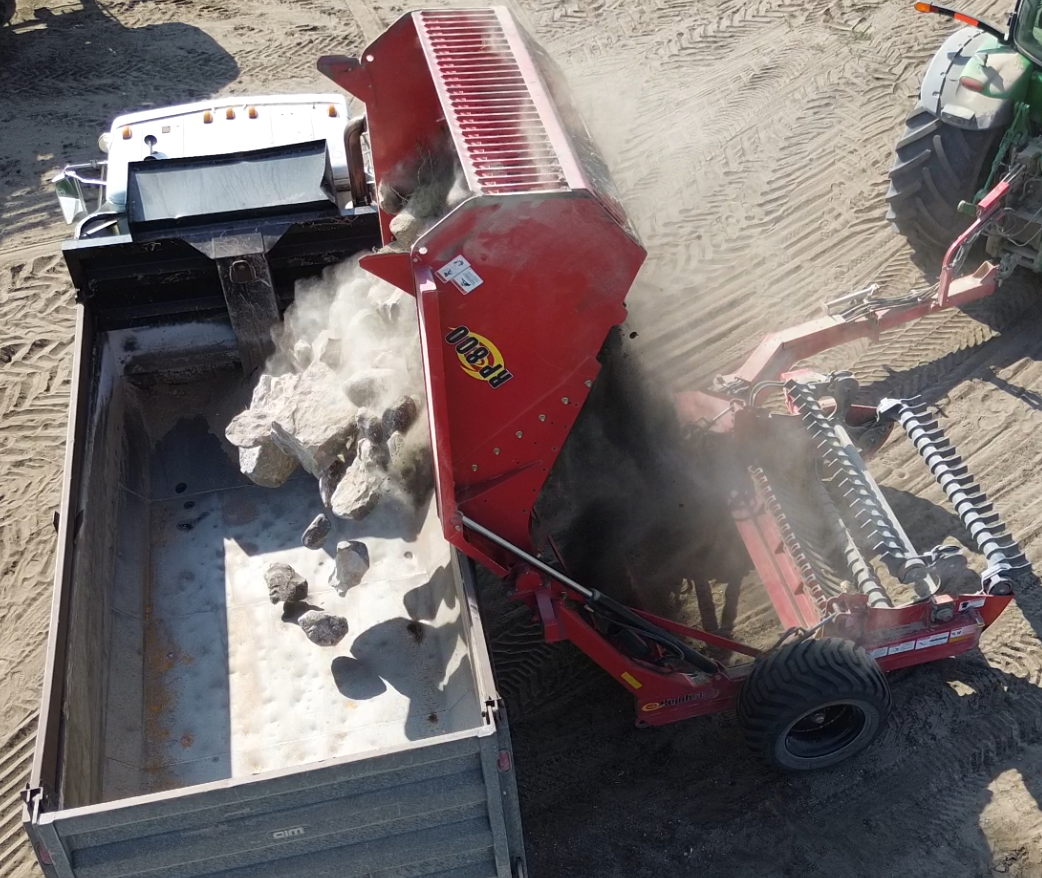

Meet the rock picker that changes the game. With an 80-inch picking width and nothing blocking your view ahead of the reel, you’ll see more, pick faster, and leave nothing behind. Every tine, plate, and panel has been engineered for strength and easy maintenance. The new design delivers a 5.4 yd3 bucket volume, cutting down your dump trips.The patented adjustable dump height, reaching up to 9' 6", allows for larger rock piles and makes loading into trailers (8’ 6” height) effortless and efficient. The apron and bucket keep dirt moving through, so you can work without constant stops.

Built tough from the ground up, reversible heavy-duty reel bats with an improved tensioning system ensure long-lasting performance. The wide 550/45-22.5 flotation tires protect your fields while keeping you moving. This isn’t just another rock picker—it’s the one your neighbor wishes they had. With more capacity, better visibility, stronger components, and smarter engineering, it’s the ultimate tool for clearing rocks fast and efficiently.

Features & Benefits


Adjustable Height

Patented Adjustable Dump Height
The patented adjustable dump height, up to 9' 6", trailers (8’ 6” height) effortless and efficient., and the apron and bucket keep trash moving through, so you can work without constant stops..

Hydraulically Positioned Hitch
The Highline® hitch design moves the rock picker fully into view of the operator and the entire picking width is outside the tractor tracks. The hitch hydraulic cylinder has a large 4" bore to take the blows of the most demanding picking and then center the picker behind the tractor for narrow road transport.

Replaceable Tines, Tine Tips and Tine Top Plates
Our tine system is built for durability and serviceability. Each tine, along with the high-wear tips and top plates, is fully replaceable—making maintenance faster, easier, and more cost-effective.

**Click photo to expand**

Read More - WHY THE HIGHLINE® ROCK PICKER IS BETTER

Guided Reel

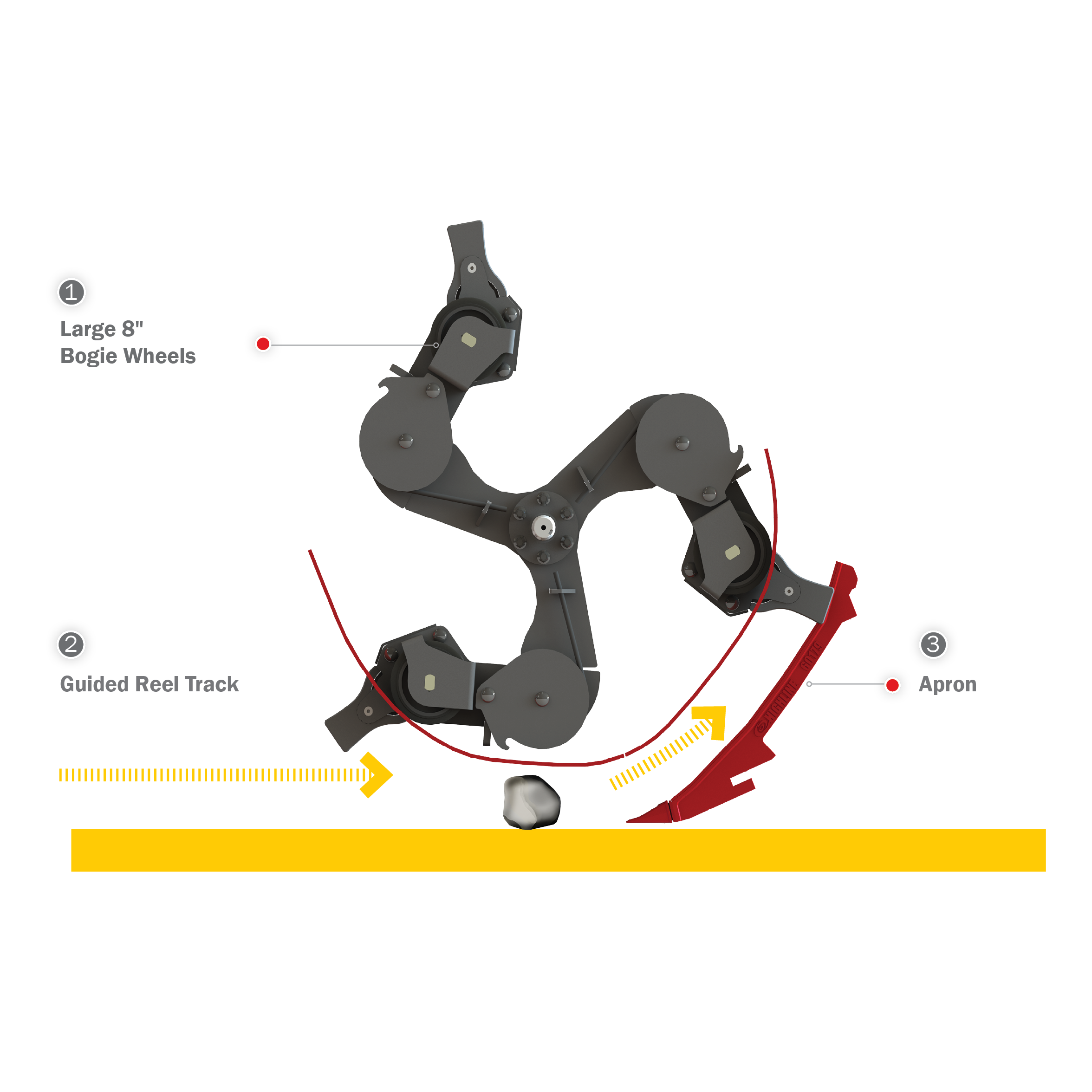

The Secret is in the Guided Reel: It is as simple as 1, 2, 3!

  1. The bogie wheels follow a special track to guide the reel for improved picking action. When the guided reel travels parallel to the ground surface, it pulls the rocks toward the apron rather than pushing down on the rocks.
  2. The guided reel lifts the rocks onto the apron.
  3. The guided reel delivers the rocks to the center of the bucket and because the reel is guided it follows the same contour as the apron.

Conventional Picker
Conventional round reels have only a few inches of positive
picking action. When the round reel contacts a rock on the
downward cycle, rather than sweep the rock towards the apron, it pushes down on the rock. 8" and smaller rocks are often missed because the round reel buries the rock.

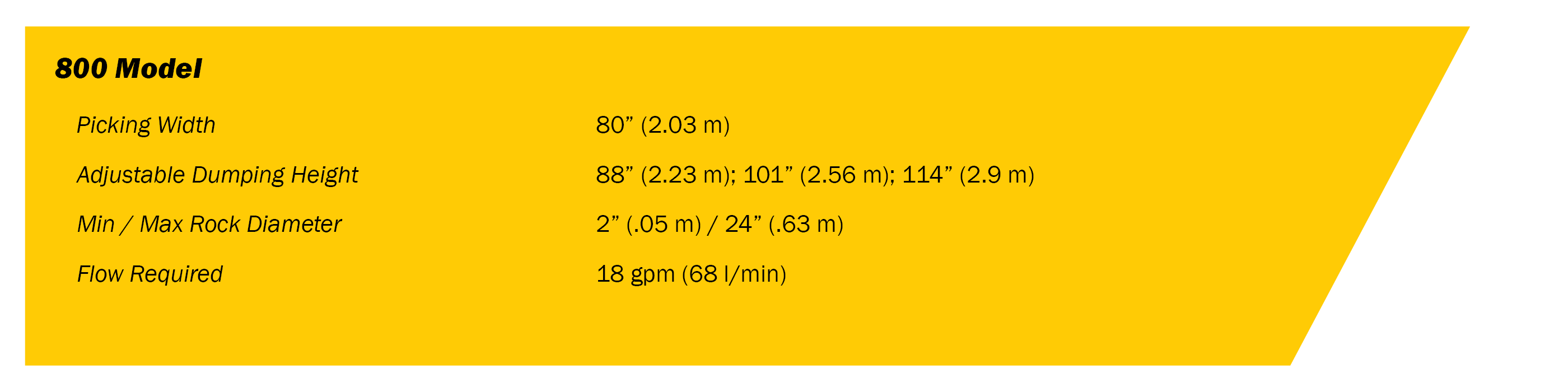

RP800 Rock Picker Quick Specs

RP800 Rock Picker Quick Specs
